| Brand Name : | Toptempo |
| Model Number : | TTP-3K |
| Price : | USD 6000.00-10000.00 PER SET |
| Payment Terms : | T/T |
| Supply Ability : | 10 SET PER MONTH |
| Delivery Time : | 7-14 days |

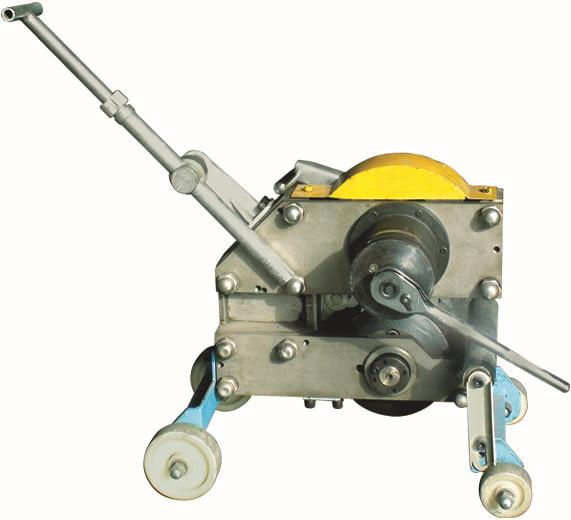

Portable Hydraulic Cutter for Steel-Cord Conveyor Belt,
- able to cut up to ST-2500 belting with steel cords
- light weight design suitable for one man operation
- with hand operated
- manufacturers' standard is acceptable
1. Light weight, convenient for using sulfide work.
2. Manual cutting speed, reduce the workload and improve the
production efficiency.
3. The incision level off, without secondary cutting curing
operations.
4. Without the power drive, smokeless with no peculiar smell,
suitable for underground conveyor belt.
5. Original domestic advanced technology.
-Special reducer,
-Special cutting blade up and down
-Mast base
Model | TTP-3K steel cord belting cutter machine |
Item | Specs & Pram |
Special gear box | 1:16 |
Special upper cutter blade | Ф196mm |
Special lower cutter blade | Ф144mm |
Cutting for overall thickness | 20.6mm |
Cutting for cord diameter | Ф7.5mm |
Unit weight | 32 KG |
Item | Specs | QTY |
Hex Wrench | 4,5,6,10mm | 1 |
Bidirectional ratchet spanner | 3/4’ | 1 |
adjustable spanner | 1 | |
Moon spanner | 2 |
|
|
