| Brand Name : | Toptempo |
| Model Number : | S400/TC360 |
| Price : | 600.00 USD -900.00 USD PER METER |
| Payment Terms : | T/T |
| Supply Ability : | 1000 METERS PER MONTH |
| Delivery Time : | 7-14 Days |
Description:

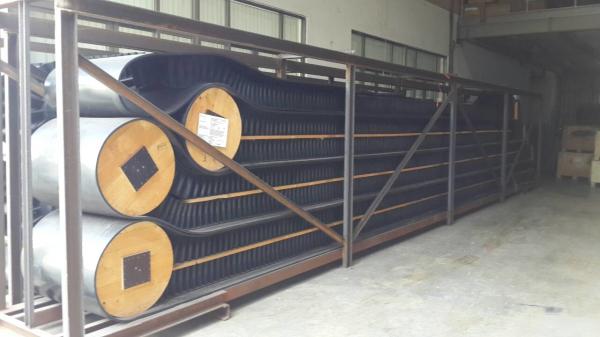

Sidewall conveyor belt can be used for horizontal, sloping or
vertical conveyance, it is one of the most effective ways of
elevating materials in a confined space, the economy is achieved by
single belt operation, wide range material can be handled, less
space and requirement, no transfer
point, low maintenance and big capacity.
It is based on the following main components:
1. Cross-Stabilized Base Belts
2. Sidewalls
3. Cleats
Base belt tyoe | strength(N/mm) | Coveyor thickness(mm) | Weight(kg/㎡) | Min pultey diameter(mm) |
XE | 250/2 | 2:2 | 9.40 | 200 |
| 400/3 | 4:2 | 13.50 | 315 | |
| 500/3 | 4:2 | 13.75 | 400 | |
| 630/4 | 4:2 | 15.20 | 500 | |
| 800/5 | 4:2 | 16.85 | 630 | |
XE+2 | 400/3+2 | 4:2 | 12.10 | 315 |
| 500/3+2 | 4:2 | 12.60 | 400 | |
| 630/4+2 | 4:2 | 14.40 | 500 | |
| 800/5+2 | 4:2 | 16.10 | 630 | |
| 1000/5+2 | 4:2 | 17.80 | 800 | |
| 1250/5+2 | 4:2 | 18.25 | 1000 | |
XE-SC+2 | 315/2+2 | 4:2 | 13.70 | 315 |
| 400/3+2 | 4:2 | 14.50 | 315 | |
| 500/3+2 | 4:2 | 15.20 | 400 | |
| 630/4+2 | 4:2 | 16.70 | 500 | |
| 800/5+2 | 4:2 | 18.00 | 630 | |
| 1000/5+2 | 4:2 | 19.50 | 800 | |
| 1250/5+2 | 4:2 | 21.40 | 1000 | |
XST-SC | 1600 | 8:8 | Please Inquire | 1250 |
| 2000 | 8:8 | 1250 | ||
| 2500 | 8:8 | 1400 | ||
| 3150 | 8:8 | 1400 | ||
| 3500 | 8:8 | 1600 | ||
| 4500 | 8:8 | 1600 |
|
|
