Professionally experienced in customer resourcing and developing, strong faith in project quality management and high sense of risk management. Strict quality assurance system, and improve after-sales
5 Years
| Ask Lasest Price | |
| Brand Name : | Toptempo |
| Model Number : | SVS-1200*830 |
| Certification : | CE |
| Price : | 7000-10000 USD/SET |
| Payment Terms : | T/T |
| Supply Ability : | 100 SET/MONTH |
| Delivery Time : | 7-14 Days |
Toptempo Vulcanizing Presses are lightweight, durable and versatile with complete availability of coverage for all splice lengths, fabric ply or steel cord. Our conveyor belt splicing presses are easy to set-up and operate and easy to maintain.
Standard & Customized Sectional Vulcanizing Press Machine
Offering great size versatility with complete coverage of all splice lengths, either fabric ply,
PVC/PVG, PU or Steel Cord Rubber Belt,After years of on-site actual operation,
with the improvement of technical engineers,
it has very high controlling,well accepted the customized press.
The proper model selection for a SECTIONAL vulcanizer
depends on determining dimensions A and B
(see diagram at right).
A - the platen length (A) is calculated by adding to the belt manufacturer’s recommended splice length.
• 160 mm for fabric belt
• 220 mm for steel cord belt
B - the platen width (B) which includes the bias angle,
is determined by adding the the belt width.
• 150 mm for fabric belt
• 200 mm for steel cord belt
To this figure multiply by:
• 1.07 for 22 degree bias angle
• 1.05 for 17 degree bias angle
Dimensions A and B represent the outside platen dimensions.Scan down the list below until you arrive at a platen size that corresponds with your figures. If the size you require is not listed below our Sales Department will
be happy to recommend a suitable size. Custom sizes,
rectangular configurations and multiple platen arrangement
are also available upon request.
• “Pressure Bag” uniform pressure system suitable to exert a
maximum pressure
23 kg/cm²(23Bar/2.3MPa/333 P.S.I)
• Custom “Copper Pipe” cooling system within platens.
• Innovative “Silicone Element” fast heating system.
• Automatic mute pressure pump
• Platens are built to order with all dimensions offered to accommodate various belt widths.
• DELIXI electrical apparatus element assembled into
insulating and waterproof control panel.

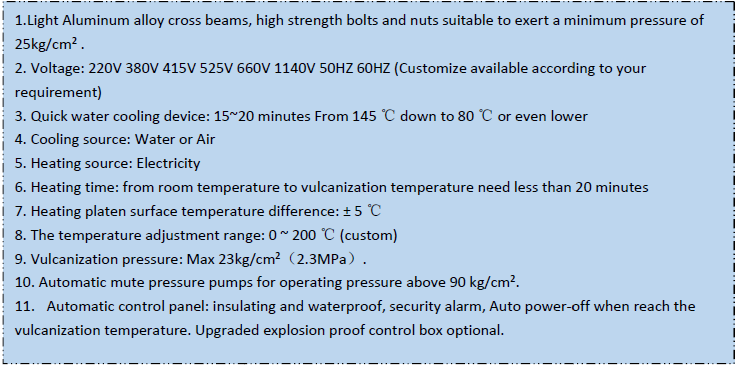

Feature
Specification | Suitable Width(mm) | Single Machine Power(KW) | Size(L x W x H) mm | Weight of Each Machine (KGS) |
| SVS-800x830 | 600 | 11.2 | 1280 x 830 x 630 | 650 |
| SVS-1000x830 | 800 | 14.1 | 1480 x 830 x 630 | 700 |
| SVS-1200x830 | 1000 | 16.5 | 1680 x 830 x 710 | 900 |
| SVS-1400x830 | 1200 | 18.6 | 1980 x 830 x 760 | 1100 |
| SVS-1600x830 | 1400 | 21.1 | 2140 x 830 x 800 | 1320 |
| SVS-1800x830 | 1600 | 23.3 | 2300 x 830 x 850 | 1480 |
| SVS-2000x830 | 1800 | 25.6 | 2600 x 830 x 950 | 1860 |

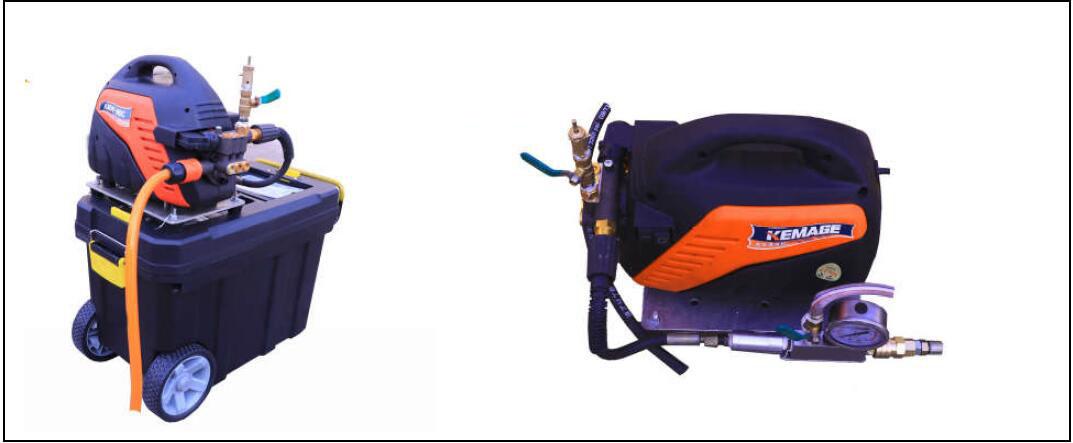

WATER PRESSURE PUMP
Automatic mute pressure pump own the features as smaller size, lighter weight, high impact-resistance and twice times faster speed of water injection. Compared with the manual pump, the operating pressure can be 23kg/cm2 (2.3MPa) above 300 P.S.I.
The pump includes gauges for fluid level and pressure. Extra reservoirs easily added for larger
presses. It can be upgraded to explosion proof as your requirement.
|
|
